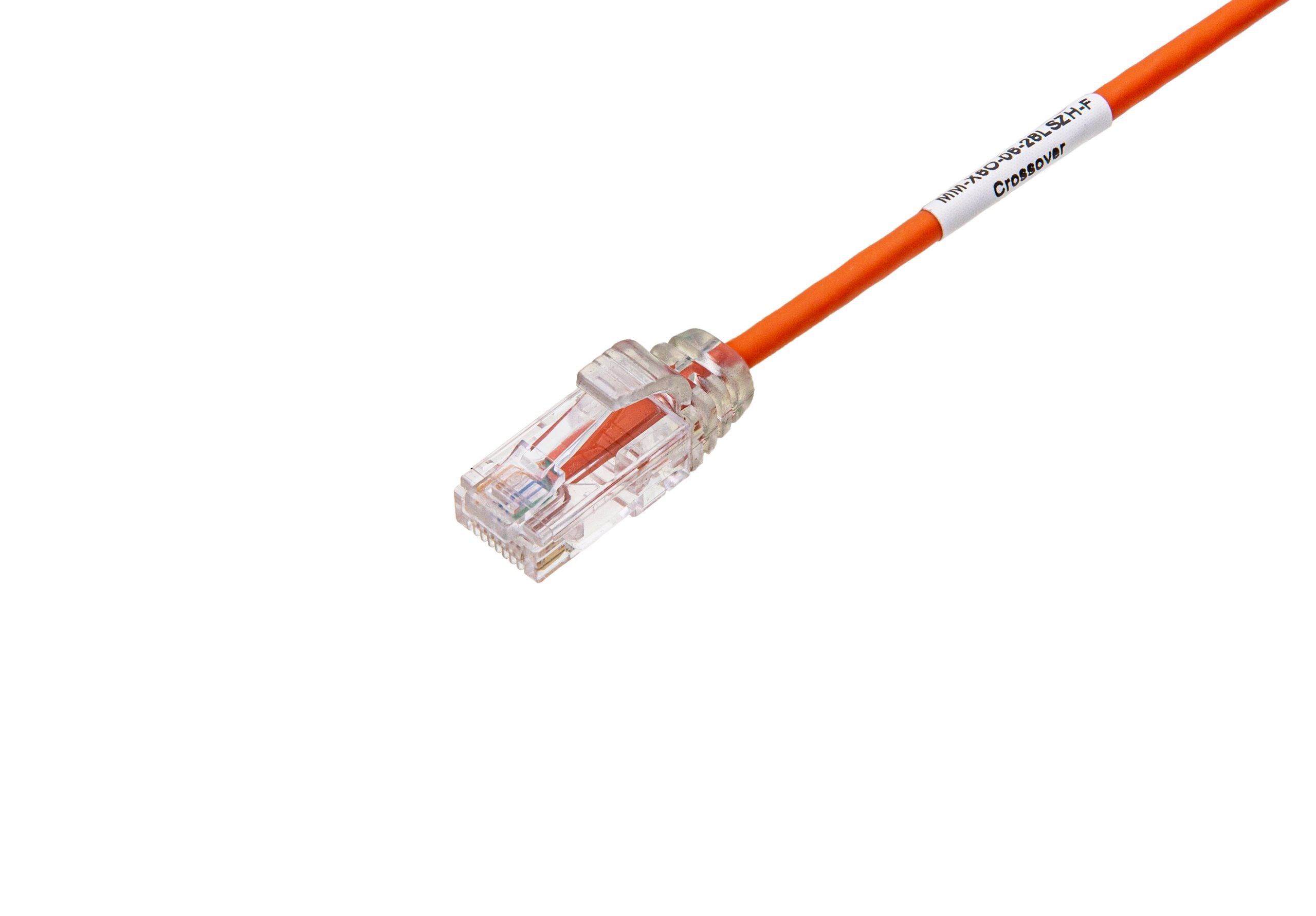

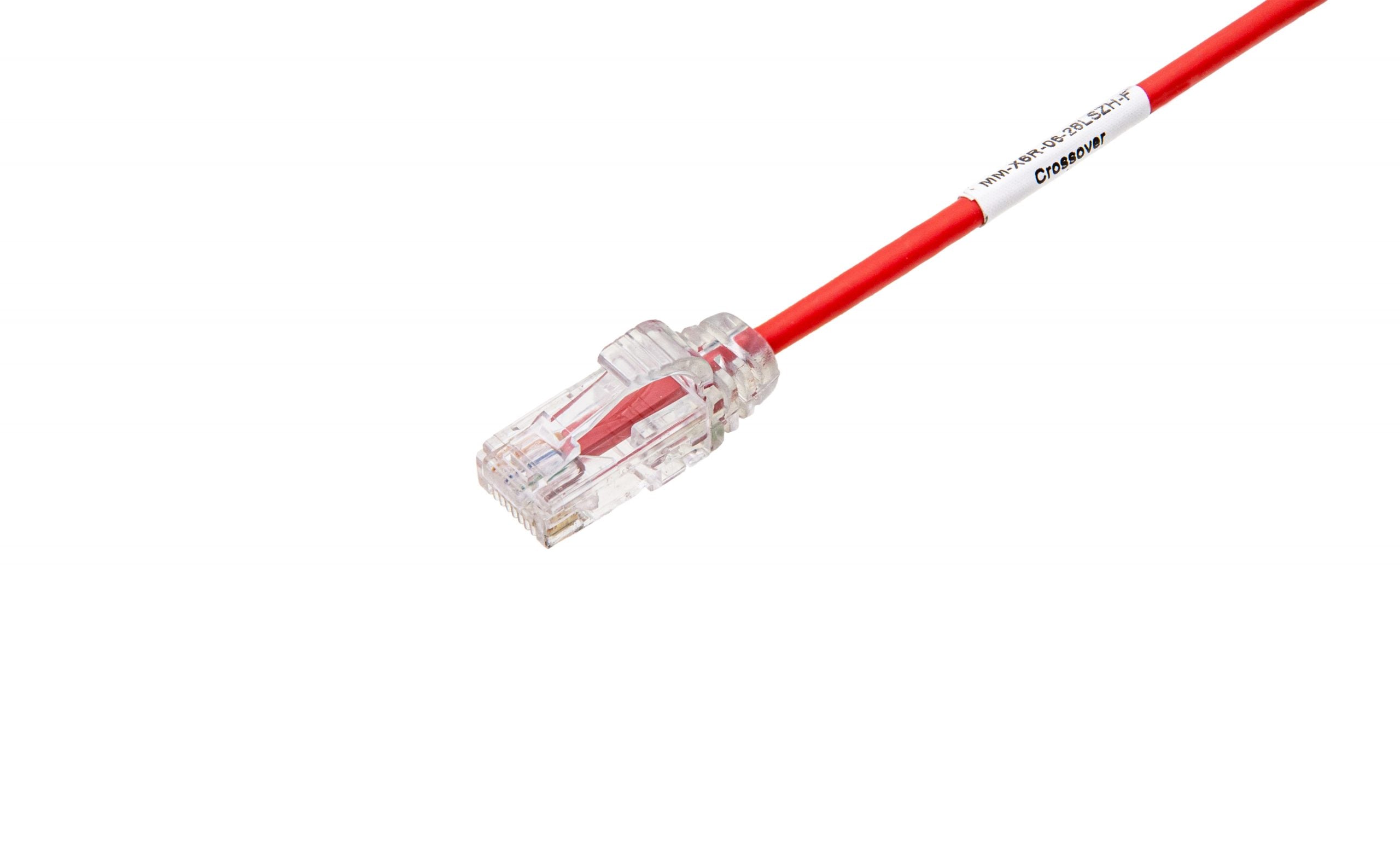

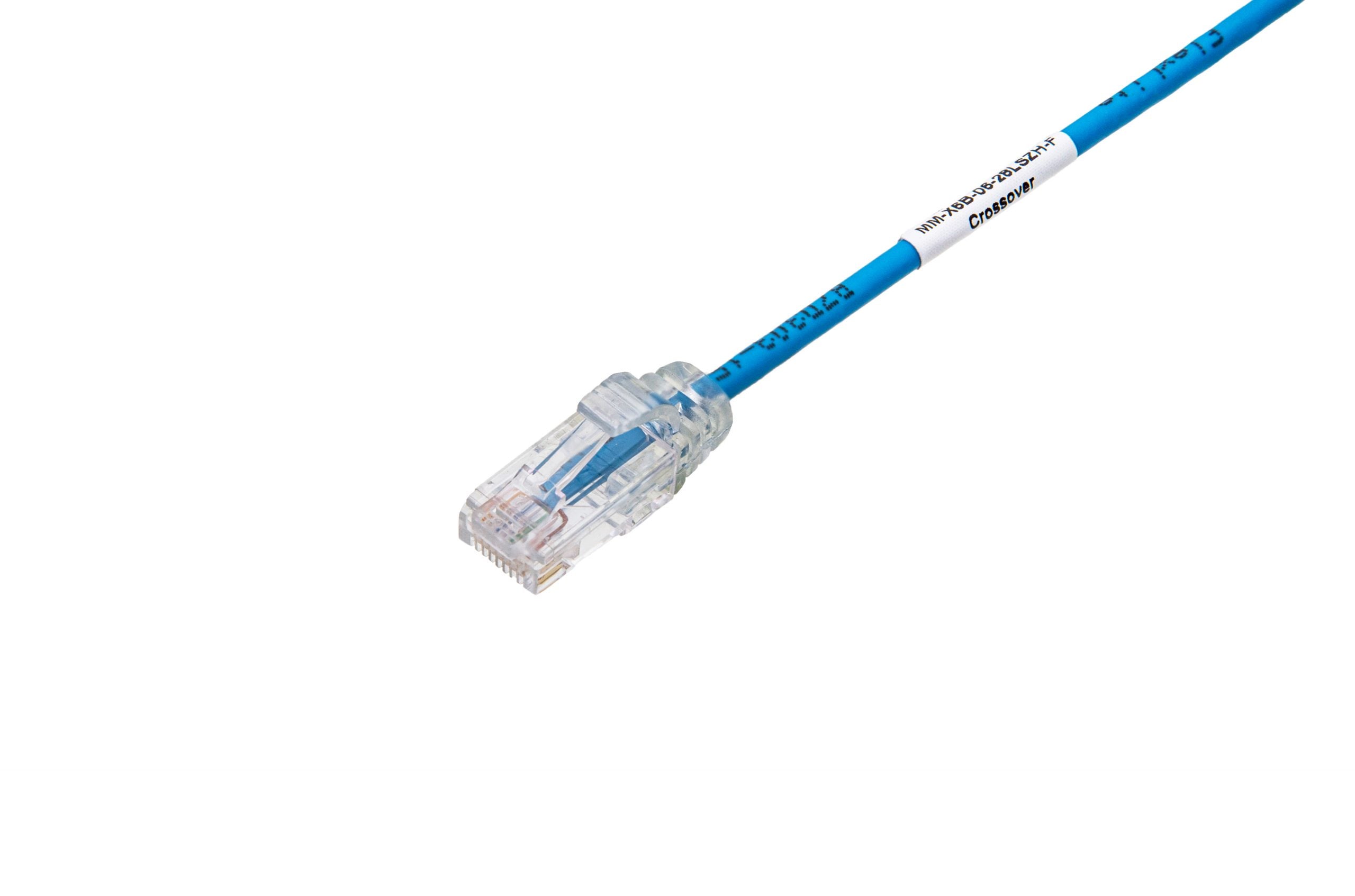

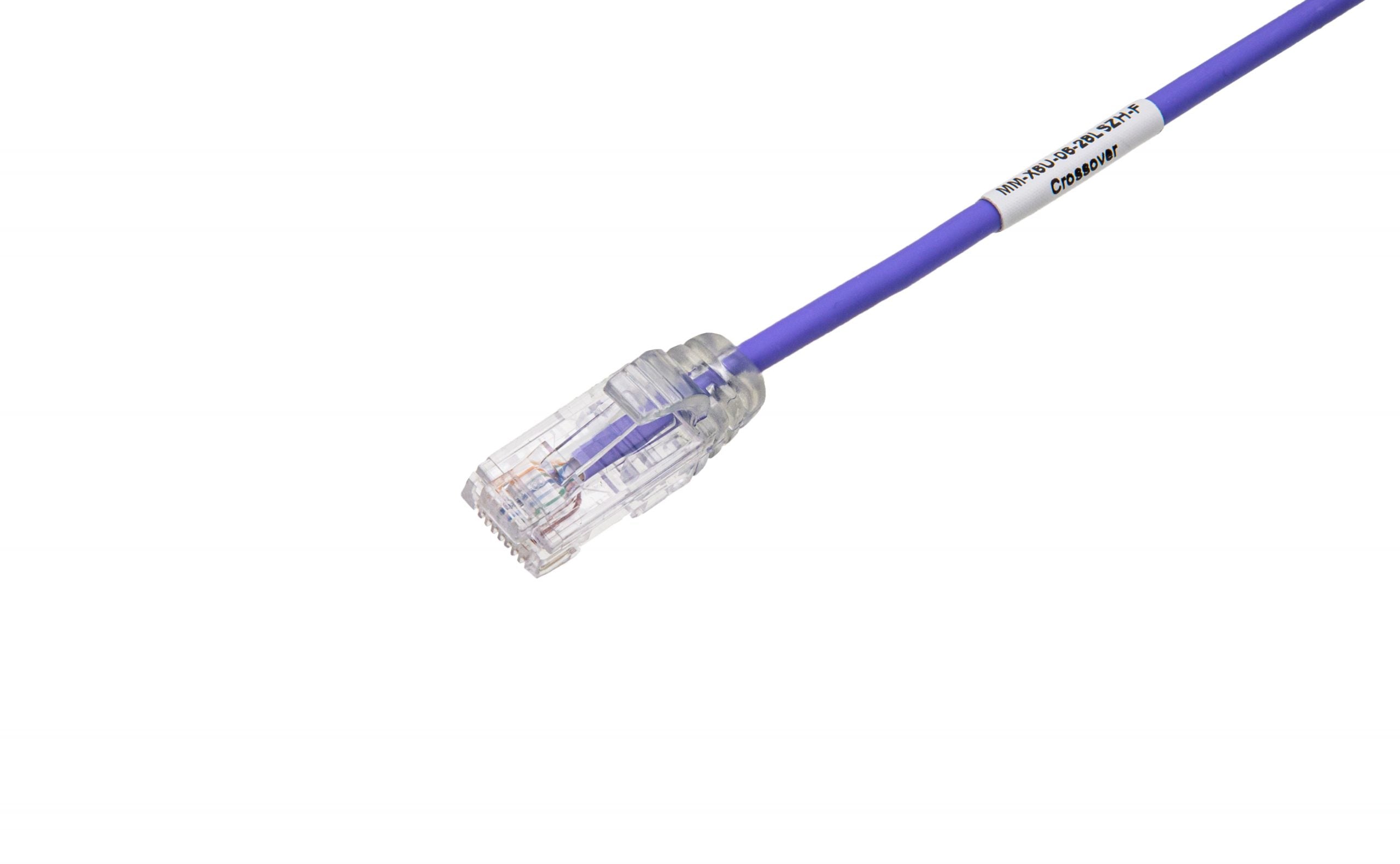

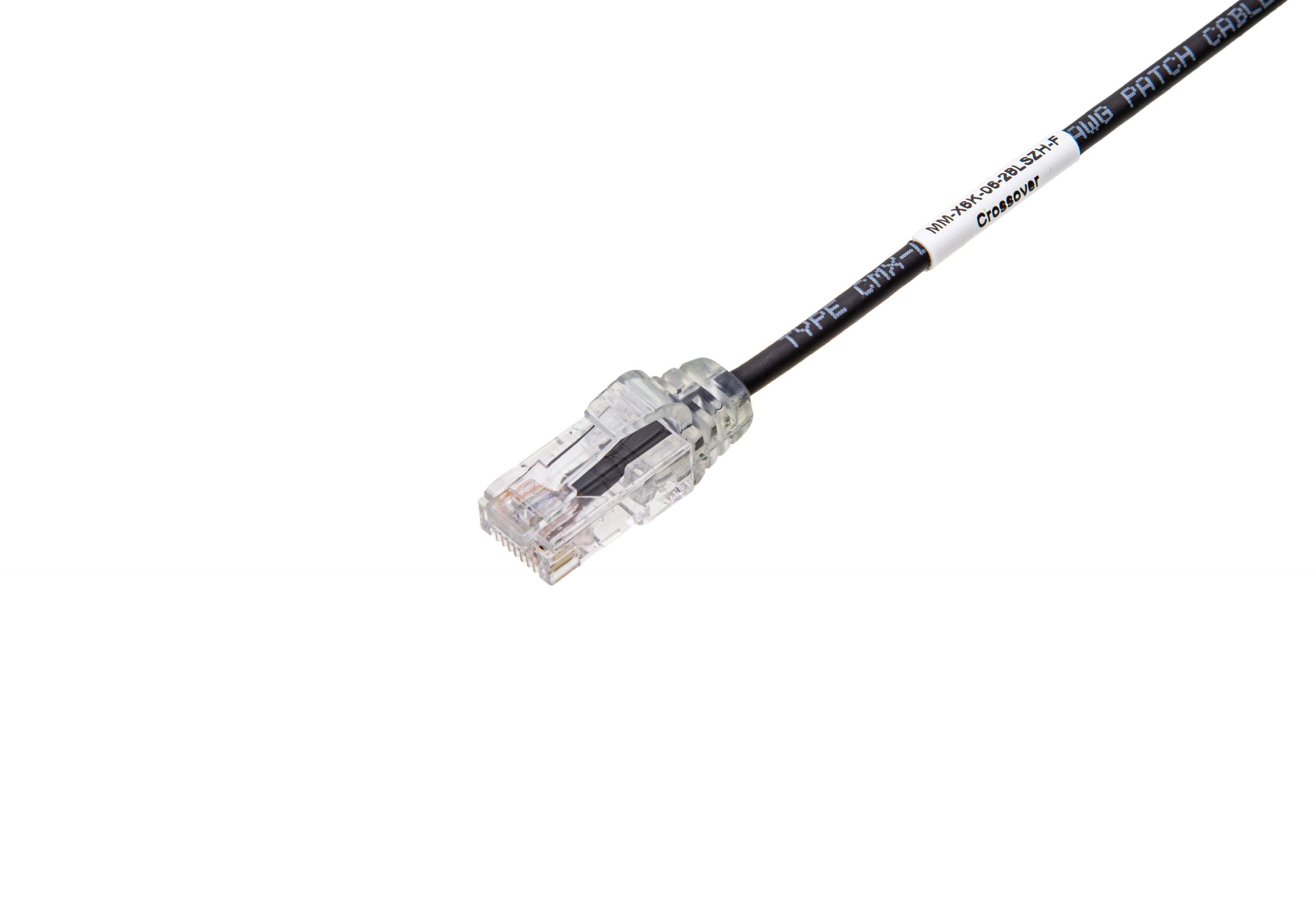

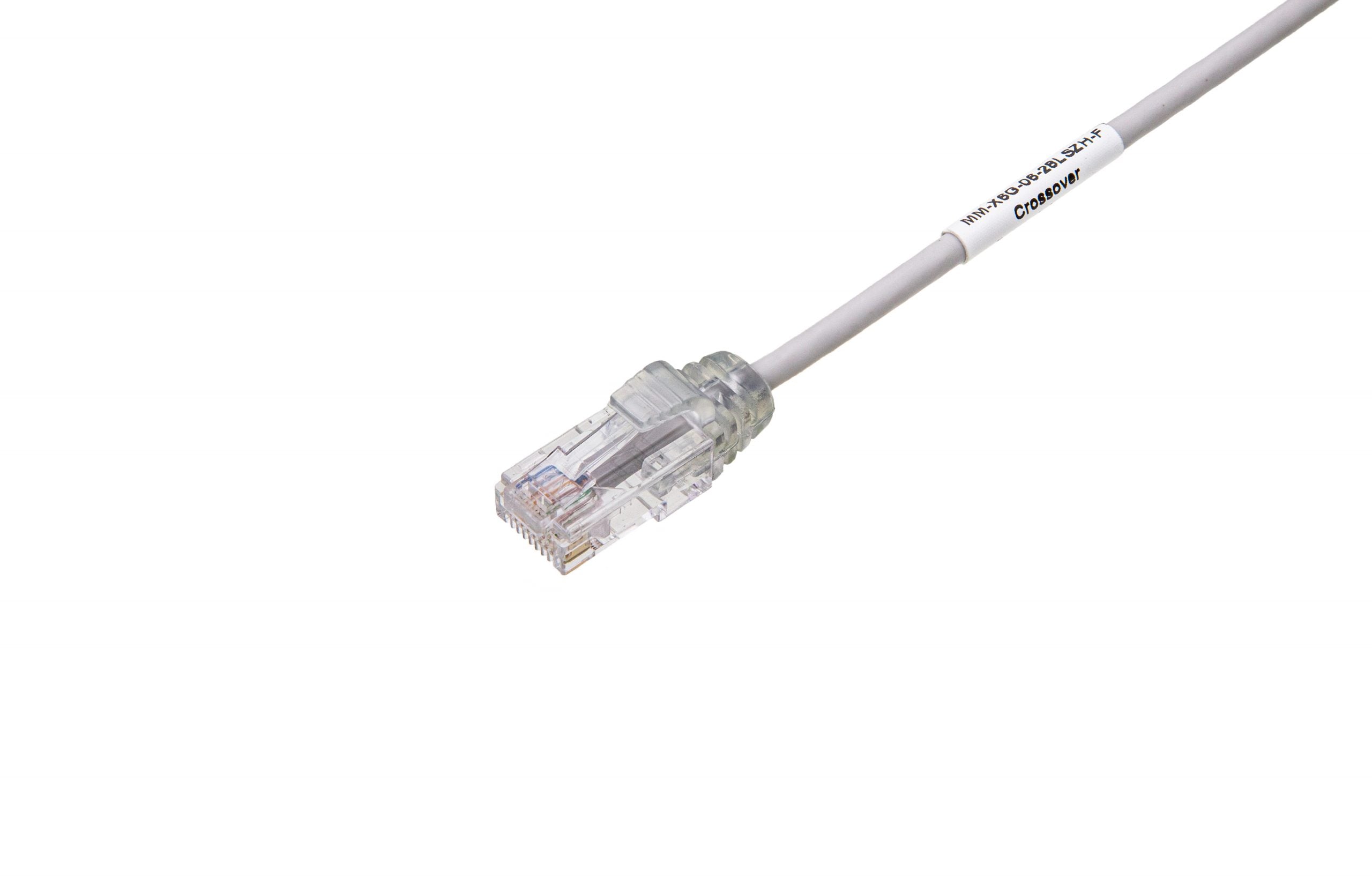

Crossover CAT6 28AWG Cable – FlexLite™ UTP LSZH

In stock - 200 items available
Cart Image PN: MM-X6B-0.5-28LSZH-F
Cart Image Inventory quantity: 200

Support up to 1Gbps Ethernet connectivity
56% smaller in outer diameter (3.8 vs. 6.2mm) for flexible cable routing
60% lighter than regular CAT6
LSZH jacket for stringent fire safety requirements
In-house designed clear tab Snagless molded RJ45 connectors for a snug fit and maximum bend radius
TAA Compliant
Custom lengths available at 1/2 ft increments
Quantity discounts available
Service available for labeling and bundling cables

MM-X6B-0.5-28LSZH-F

200

Unit Price:
$5.34 USD
Total Price:
$5.34

Lead time: 寄達台灣需要6-7週

Customize with PTspeed

Description: Your tailor-made solution awaits

Contact Us
Description

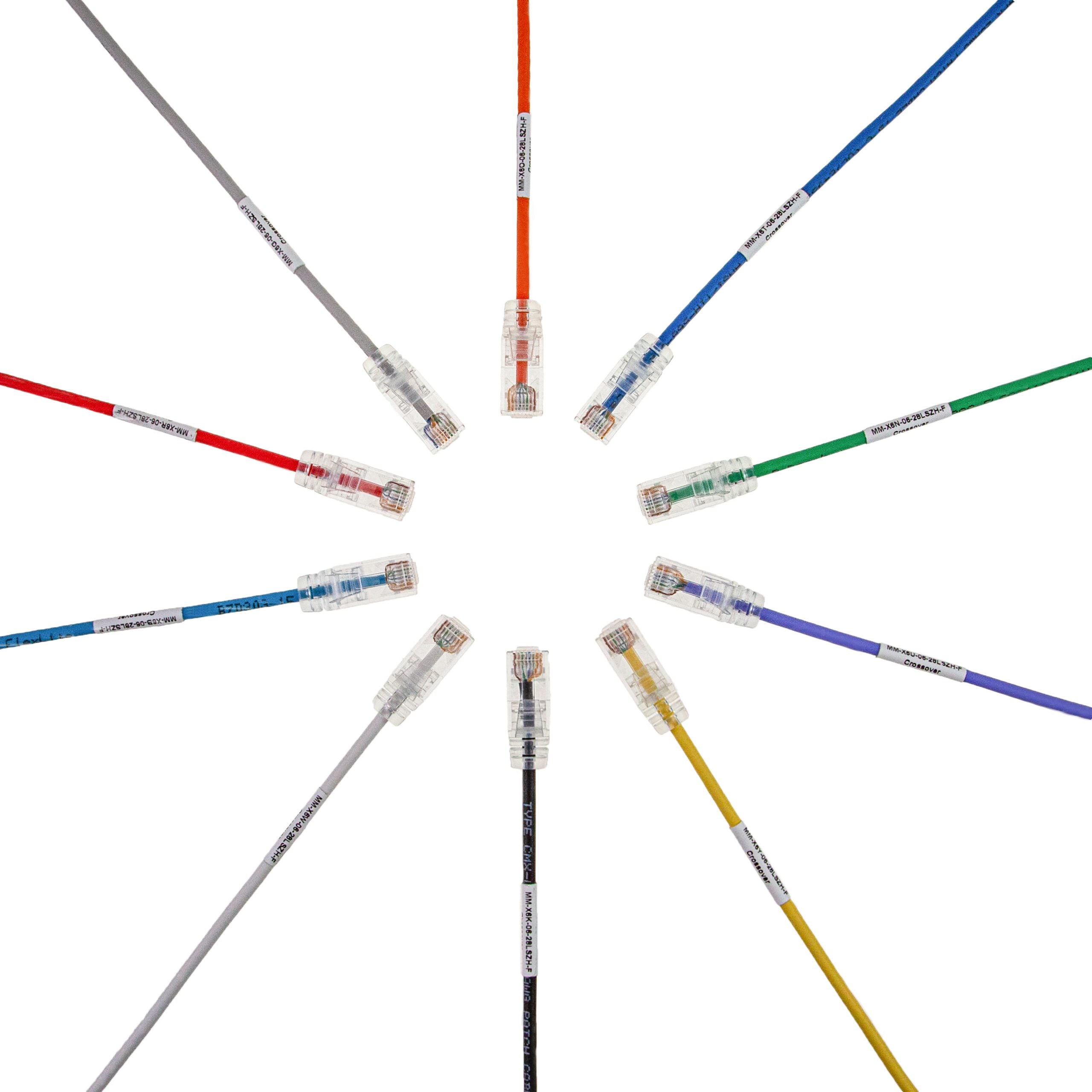

FlexLite™ CAT6 28AWG Patch Cord Series is a compact, lightweight CAT6 design with these differentiating advantages:

Cross-Over Pinout
Minimum cable outer diameter (3.8 mm vs. 6.2 mm for regular CAT6) to give 25 mm of cable bend radius (40mm for regular CAT6) for maximizing cable routing flexibility and rack airflow
Lightest CAT6 cable among the Pactech offerings – 60% lighter than regular CAT6. It helps reduce strain on network ports, thus extending network port lifetime
Stable performance with passing performance tests for wire map, NEXT and return loss
Environmental friendly IEC60332-1-2 flame test ratings and Low Smoke Zero Halogen Jacket (LSZH) classification

The FlexLite™ CAT6 cables are made of 28AWG with 100% stranded copper wires as opposed to copper clad aluminum (CCA). They support up to 250 MHz. The connectors use T568B pin assignments. The FlexLite™ CAT6 cables are Fluke passed and certified. The test results are available upon request.
