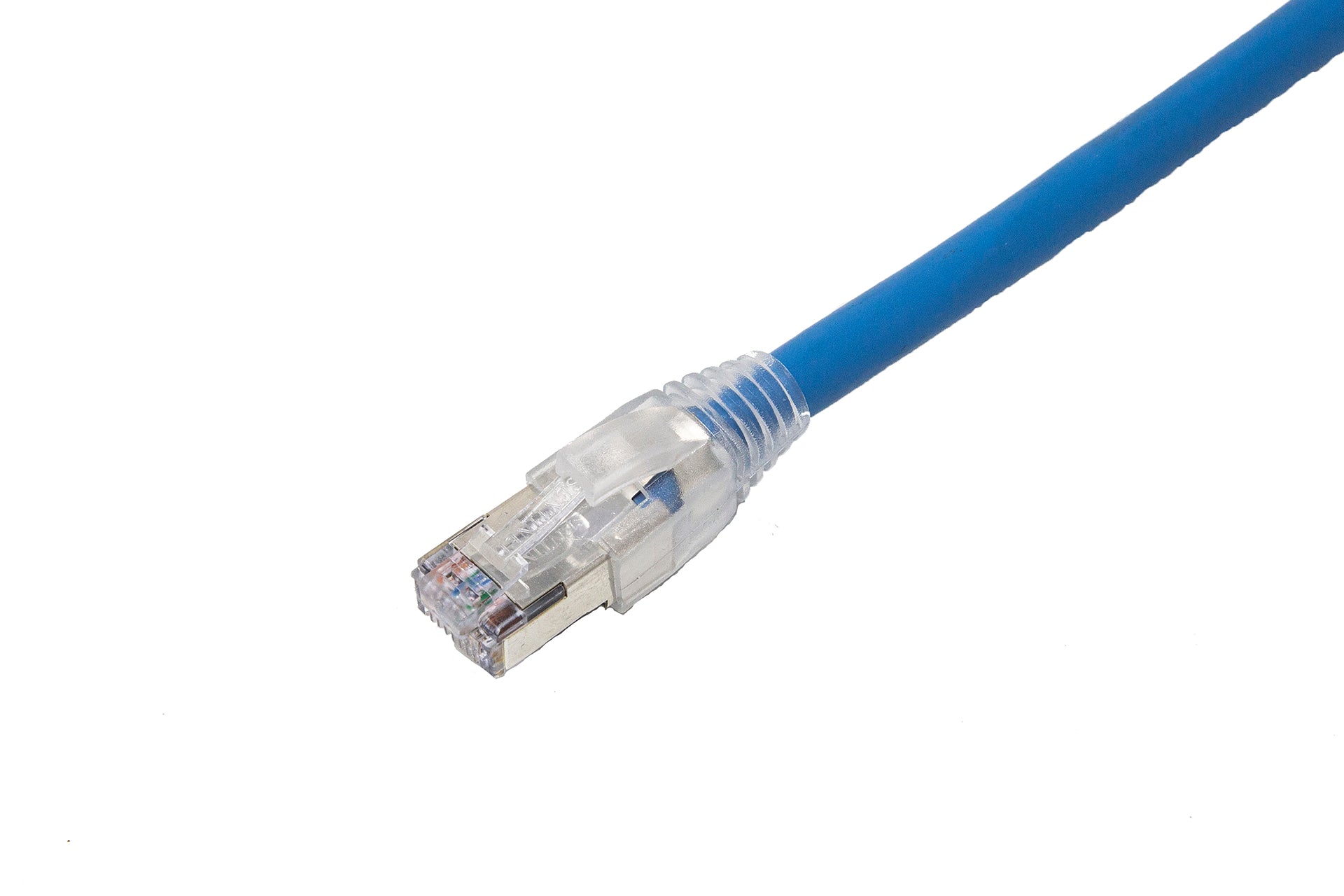

CAT6A 23AWG F/UTP Cable – Patch Cord Plenum


MM-P6AB-0.5
200
Lead time: 5-7 workdays for In-Stock items. If you have any special requests, please email us after placing your order. Thank you.
Lead time: 台灣地點下單後6-8週內方可出貨,建議下單前可來信確認數量
CAT6A shielded twisted pair (F/UTP) cables are designed for 10 Gigabit Ethernet and other network physical layers. They are backward compatible with the Category 5/5e/6. Compared with Cat 5, Cat 5e, and Cat6, Cat6A meets more stringent specifications that are less susceptible to crosstalk and system noise.
The cables are made of 23AWG with 100% solid copper wires. They support up to 750 MHz. They are fully compliant with ANSI/TIA 568.2-D. The connectors use T568B pin assignments. All CAT6A cables are Fluke passed and certified. The test results are available upon request.
長度: 0.5 FT
客製化: Custom length, custom color
可選服務: Single label (or multiple labels) per cable, single label (or multiple labels) per bundle, JIT (just-in-time)
物流/運輸: Special shipping instructions, special packaging instructions, drop shipment, international shipment, will call arrangement, trucking arrangement
Cable type: Category 6A
Outside dimension: 5.0 mm +/- 0.3mm (diameter) for LSZH Jacket
Outside dimension: 5.2 mm +/- 0.3mm (diameter) for Soft PVC Jacket
Jacket material: LSZH, Soft PVC
Conductor Gauge: 28 AWG
Conductor construction: Stranded copper wires
Cable Performance: Up to 500MHz for LSZH, 550MHz for Soft PVC
Cable shielding: No overall shielding or braid (U) with foil screened twisted pairs (FTP)
Connector wiring: T568B
Connector type: Sentinel® RJ45 clear connector
Certifications: UL Code 444, EIA/TIA-568-C.2, UL & cUL E495789
Installation temperature: 0°C to 70°C
Operation temperature: -10°C to 70°C
RoHS compliant: Y
