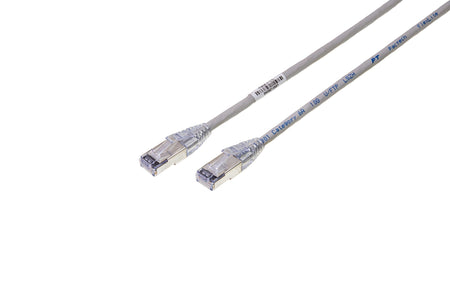

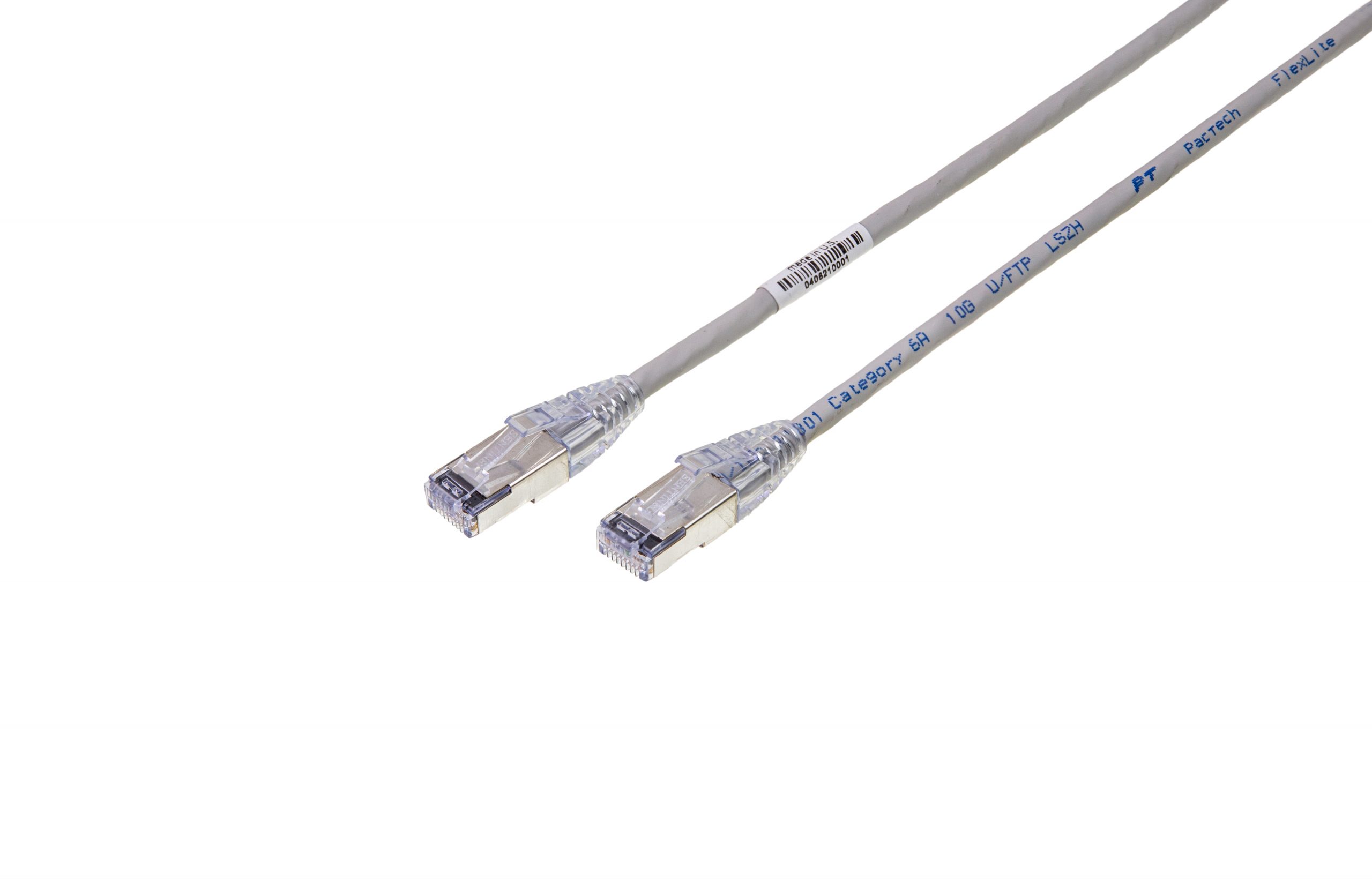

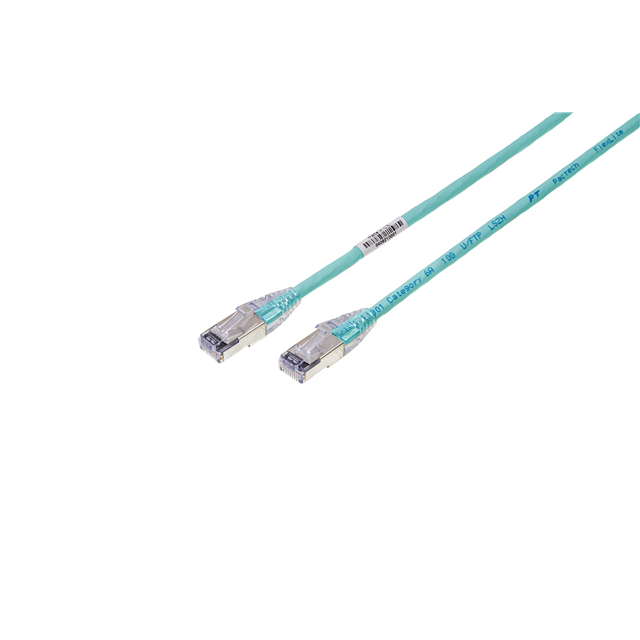

Sentinel® RJ45 Connectors with Thin CAT6A 28AWG Cable – FlexPremium U/FTP LSZH


ZZ-S6AA-0.5-28LSZH-F
200
Lead time: 5-7 workdays for In-Stock items. If you have any special requests, please email us after placing your order. Thank you.
Lead time: 台灣地點下單後6-8週內方可出貨,建議下單前可來信確認數量
PTspeed FlexPremium CAT6A U/FTP 28AWG Patch Cord Series is a compact, lightweight CAT6A design with these differentiating advantages:
40% smaller in cable outer diameter for efficient rack airflow and higher cable bundle density
40% better in bend radius for maximum cable routing flexibility
Snagless plug with strain relief boot for maximum durability
Contact Plating: 50 Micro-Inch
Insertion/Extraction Life:1000 cycles
Contact Resistance: 10 Milliohms max.
Current/Voltage: 30 VAC/42 VDC at 1.5 AMPS
Environmental friendly IEC60332-1-2 flame test ratings and Low Smoke Zero Halogen Jacket (LSZH) classification
長度: 0.5 FT
客製化: Custom length, custom color
可選服務: Single label (or multiple labels) per cable, single label (or multiple labels) per bundle, JIT (just-in-time)
物流/運輸: Special shipping instructions, special packaging instructions, drop shipment, international shipment, will call arrangement, trucking arrangement
Cable type: Category 6A
Outside dimension: 5.0 mm +/- 0.3mm (diameter) for LSZH Jacket
Outside dimension: 5.2 mm +/- 0.3mm (diameter) for Soft PVC Jacket
Jacket material: LSZH, Soft PVC
Conductor Gauge: 28 AWG
Conductor construction: Stranded copper wires
Cable Performance: Up to 500MHz for LSZH, 550MHz for Soft PVC
Cable shielding: No overall shielding or braid (U) with foil screened twisted pairs (FTP)
Connector wiring: T568B
Connector type: Sentinel® RJ45 clear connector
Certifications: UL Code 444, EIA/TIA-568-C.2, UL & cUL E495789
Installation temperature: 0°C to 70°C
Operation temperature: -10°C to 70°C
RoHS compliant: Y
