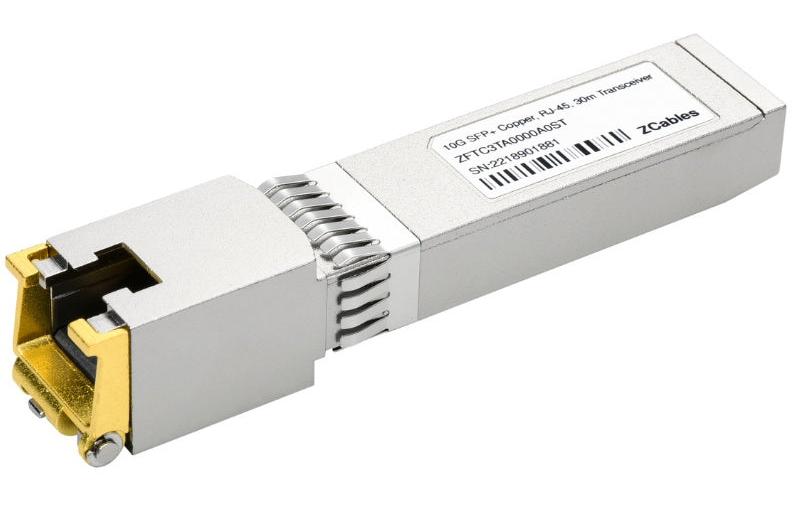

10G Base-T SFP+ Copper RJ45 30m Transceiver Module

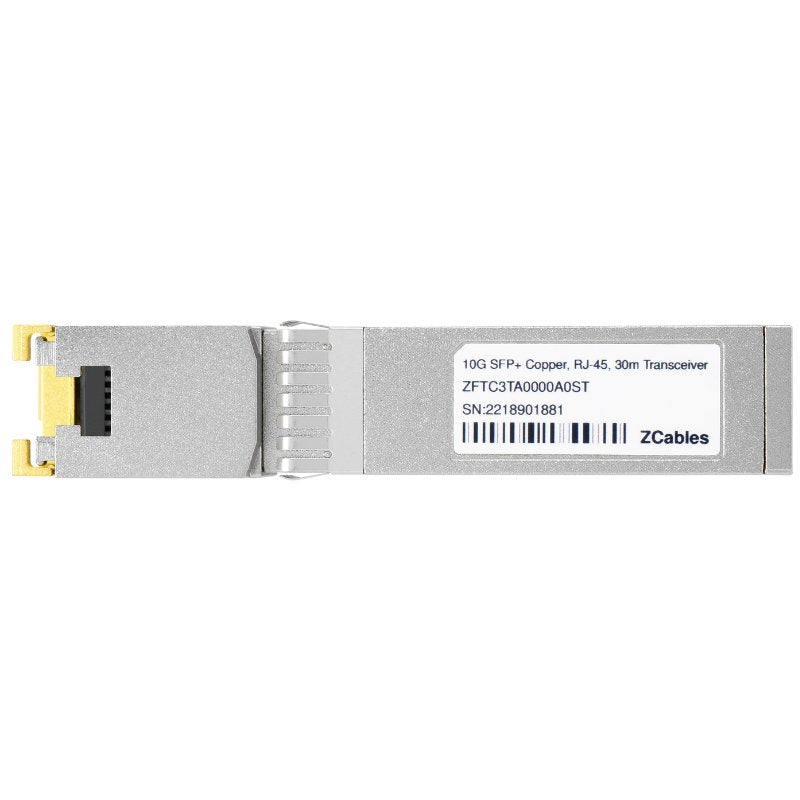

ZFTC3TA0000A0ST-1

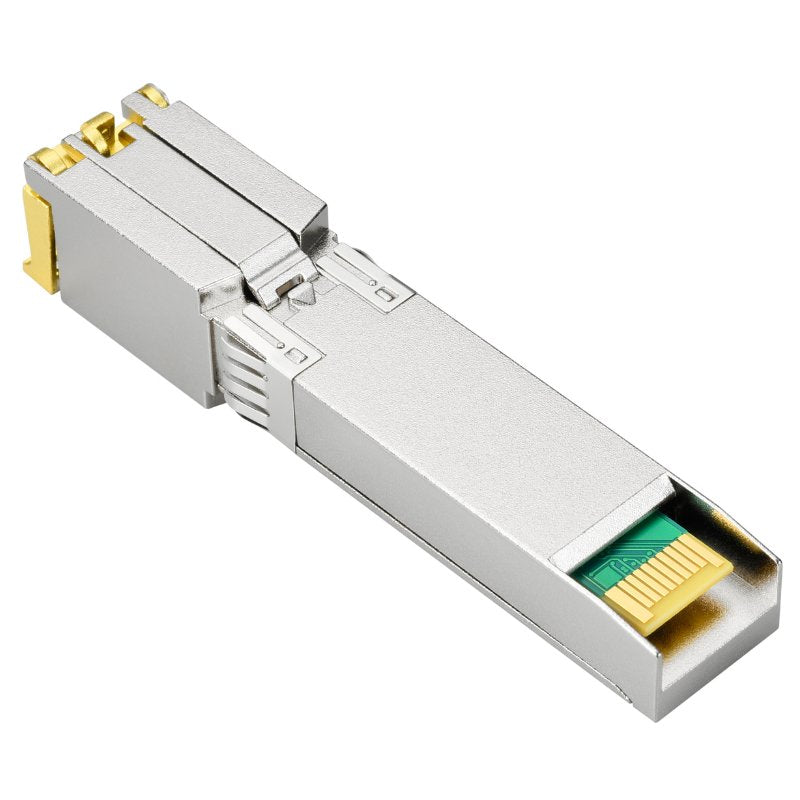

ZFTC3TA0000A0ST-3
10G Base-T SFP+ Copper RJ45 30m Transceiver Module
ZFTC3TA0000A0ST-1
ZFTC3TA0000A0ST-3

10G Base-T SFP+ 銅纜 RJ45 30m Transceiver 光模組- Standard

有存貨 - 14件商品可用
Cart Image PN: ZFTC3TA0000A0ST
Cart Image Inventory quantity: 14
  • 標準10G Base-T SFP+，支持30米距離。
  • 插拔即用，安裝簡便。
  • 實時DDM監控信號狀態。
  • 兼容選擇：Standard / 可客製

ZFTC3TA0000A0ST

14

Unit Price:
$109.25 USD
Total Price:
$109.25

Lead time: 庫存商品需要 2-3 個工作天

Lead time: 台灣地點下單後6-8週內方可出貨，建議下單前可來信確認數量

Technical Spec

Special Orders

  • Delivery time 特殊訂單需要 4-8 週
Description

產品描述

10GBase-T SFP+ 銅纜 RJ45 30m Transceiver 光模組- Standard

特徵

  • 簡易使用 - 安裝簡便，插拔即用，完全支持熱插拔。廣泛應用於擁有10Gb SFP+端口的光纖交換機、路由器、網卡、伺服器或其他光纖設備中。
  • 卓越的DDM功能 - DDM可實時監控光模組的發送和接收信號狀態，幫助發現潛在問題。
Compatible Standard Form Type SFP+
Max Data Rate 10G Power Consumption Lower than 2.3W
Max Cable Distance 30m Cable Type Copper
DDM/DOM Not Supported Connector Type RJ45
Working Temperature 0 degree Celsius ~ 70 degree Celsius Storing temperature -40 degree Celsius ~ 85 degree Celsius
Operating Relative Humidity 5% ~95% Supply Current 600mA~750mA
Input Voltage 3.13V~3.47V Maximum Voltage 3.8V
SFP Input LOW 0V ~0.8V SFP Input HIGH 2V ~ VCC+0.3V
SFP Output LOW 0V~0.5V SFP Output HIGH Host_VCC-0.5V ~ Host_VCC+0.3V
Tx Input Impedance 50 Ohm Tx Output Impedance 100 Ohm
Rx Input Impedance 100 Ohm Rx Output Impedance 50 Ohm
Transmitter Differential Input Voltage 180mV ~ 700mV Receiver Differential Output Voltage 350mV~850mV
Rise and Fall Time 100ps Data Rate 10Mb/sec~10000Mb/sec
Line Frequency 125MHz I2C 0Hz~100,000Hz
